Rayon Servo Motion Control Products

Operational Efficiency with Rayon Servo Motion Control

 To achieve the greatest operational efficiency, deploy advanced motion control automation supported by extremely innovative, yet intuitive, extensive, yet easy-to-use, configuration software.

Rayon Servo Motion controllers offer a variety of power densities, extend a compact design, and have a whole array of applications.

The Rayon products family best shows their strength in various applications such as Turrets, RWS, AGV, robotics steering, powering flaps actuators, propulsion, wing motor controlling, missiles and rockets, antennas/vision system movement control, and much more.

Rayon servo motion controllers cover the smallest to the most robust motion control applications and provide comprehensive answers to positioning, speed, and current (torque) loops with a variety of communication protocols and motor feedback.

Redler’s advanced motion controllers operate with various systems such as SOM (System On Module solutions) for smaller applications, UAVs, and gimbals, and up to large-scale applications like RWS (Remote Weapon Station), AGV (Automated Ground Vehicles), Turrets, Electrical Automotive Steering, Rockets, Aviation Antennas, Actuators, and more.



Innovative Servo Motion Control – highly efficient electric motor controller which is a full control unit, and end-to-end solutions including IoT options.



Our Power Rider family line of products are solid-state PDU circuit breakers, and Relays are patent covered. Power rider – the micro groundbreaking electrical power protection, management, distribution, and maintenance family supports the eV application at any size and need.


IoT HW and SW, solutions  – developing & manufacturing sensors, communication, low energy wireless communication, BLE, Wi-Fi unique solutions, Cloud services, and Cellular applications by the subcontractor

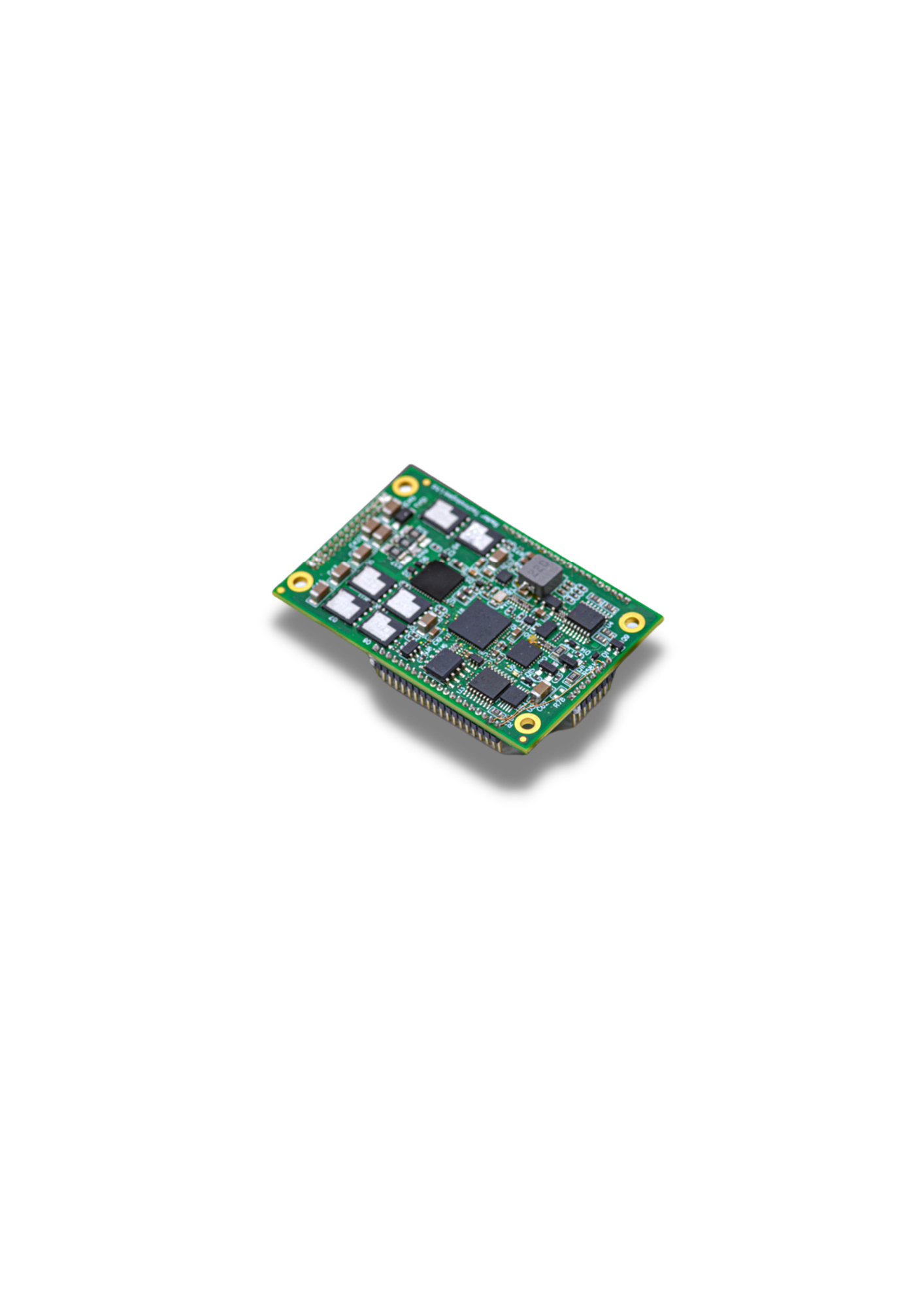

TMC- Flat Servo Motion- Controller

TMC- Flat Servo Motion- Controller

​Overview

Although it holds an extremely thin layer characteristic,

this servo motion controller is able to operate with great performance- an incentive for gimbals, pedestals, vision spots, Remote, Vision stations, and UAV platforms.



  • Full solution, BLDC Motor controller driver on a module
  • Miniature, world-class power density
  • High-efficiency Motor controller driver
  • 12-48VDC operating voltage. 12-80VDC extended range available
  • 5 Ampere RMS current. 15 Ampere RMS current extended range available
  • Sinusoidal, flux-oriented control, and trapezoid drive
  • Hall, Incremental, SSI, Sin/Cos absolute/Incremental feedback
  • PID closed loop modes: Position, speed and
  • Communication-CANBUS, RS232-422
  • Digital or Analog ±10V command
  • Firmware upgrade
  • 4 digital inputs. 2 digital outputs
  • Operating temperature -40°c to +71°c
  • Protection- Over temperature, Over voltage, Over current-

encoder fault, motor stuck, and more.

  • Safety inputs. STO1, STO2 cuts the MOSFET gate’s power.
  • PCB Board mount.





Learn More Now
e90b1b_7e1dc4b5abd7482189ce53c7b2f05c16~mv2-1

Download Micro Rayon Brochure

Micro Rayon (RS232/RS422)

Micro Rayon (RS232/RS422)
Micro Rayon (RS232/RS422)

Micro Rayon (RS232/RS422)

​Overview

  • Sinusoidal, flux-oriented control, and trapezoid drive
  • Hall and incremental encoder feedback
  • Analog and digital commands
  • Firmware upgrade via RS232
  • Protections: temperature, voltage, CPU, encoders, hall, motor stuck, etc.
  • Three digital inputs and three digital outputs
  • GUI — Load/Read parameters and high-speed live graph monitor
  • Comprehensive error messages
  • Hardware short motor winding protection
  • Operating temperature: -40°c to 71°c
Learn More Now
e90b1b_7e1dc4b5abd7482189ce53c7b2f05c16~mv2-1

Download Micro Rayon Brochure

Micro Rayon

Single board

Single board
Single board

Single board

​Overview

  • Sinusoidal (FOC – field oriented control) and trapezoid drive
  • Hall and digital SSI, incremental encoder feedback
  • Position (2khz), speed (20khz), current (4khz), and stepper
  • 20A RMS continuous current – with heat sink plate
  • RS422 and RS232, CAN
  • Analog and digital commands
  • Firmware upgrade via RS232
  • Protections: temperature, voltage, encoders, hall, motor stuck
  • Comprehensive error messages
  • Three digital inputs, two digital outputs
  • Hardware short motor winding protection
  • Operating temperature: -40°c to 71°c
  • Regeneration protection: 10J/10msec
  • Dimensions: 85.13mm x 70.14mm x 16.3mm
Learn More Now
e90b1b_7e1dc4b5abd7482189ce53c7b2f05c16~mv2-1

Download Single board brochure

Rayon Single Board-1

Rayon 70

IMG_8673-removebg
IMG_8673-removebg

Rayon 70

​Overview

  • Sinusoidal and trapezoidal drive
  • Hall, digital, and analog encoder feedback
  • Position (2khz), speed (20khz), current (4khz), and stepper
  • 55A RMS continuous current, and up to 120A peak (with adequate cooling)
  • PID closed-loop modes: position, speed, current, and stepper
  • Communication: CAN-BUS (1Mbps), CANopen (main commands), RS232, or RS422
  • Analog and digital commands
  • Firmware upgrade via RS232
  • Lab-view MMI – load/Read parameters and live graph monitor.
  • Protections: temperature, voltage, CPU, encoder hall, motor stuck
  • Comprehensive error messages
  • Five digital optically isolated inputs, two digital optically isolated outputs
  • Reliability: high current low Rdson, 100V Power MOSFETs, hardware, short protection
  • New effective thermal solution
  • Temperature operation environment: -40°c to 71°c
  • Weight and dimensions: 300gr, 120mm x 67mm x 34mm
Learn More Now
e90b1b_7e1dc4b5abd7482189ce53c7b2f05c16~mv2-1

Download Rayon 70 brochure

Rayon 70

Rayon 300

Rayon 300
Rayon 300

Rayon 300

​Overview

  • Galvanically isolated power stage from 12V to 48VDC.

  • High power Sinusoidal, flux-oriented control.

  • Hall, Digital SSI.  Sin Cos (EnDat 2.2) and two Incremental encoders feedback.

  • PID closed loop modes: Position (2khz), speed (4khz), current(20khz) and stepper.

  • 250 Arms continues )10 sec 400A over drive @ 42Volts-Air cooling.)

  • Communication: CAN bus, Ethernet, RS422-485 and RS232

  • Analog and/or digital commands.

  • Ripple reducing operation mode.

  • Firmware upgrade via RS232.

  • Protections: temperature, voltage, CPU, encoders, hall, motor stuck and more.

  • 4 digital isolated inputs. 3 digital isolated outputs

  • High current 3A motor break output

  • Rigid switch construction, high current 3X195A 100V power MOSFETs, for 24-48VDC

  • Hardware short motor winding protection.

  • Two encoder inputs with automatic switchover.

  • Dimensions : 160mm x 171mm x 65mm

  • Operating temperature -40°c to +71°c  (Extended temp range: -55°c to +85°c)

  • *A 400V version is under Development-inquire for an evaluation

APPLY FOR MORE INFO
e90b1b_7e1dc4b5abd7482189ce53c7b2f05c16~mv2-1

Get more info about the Rayon 300

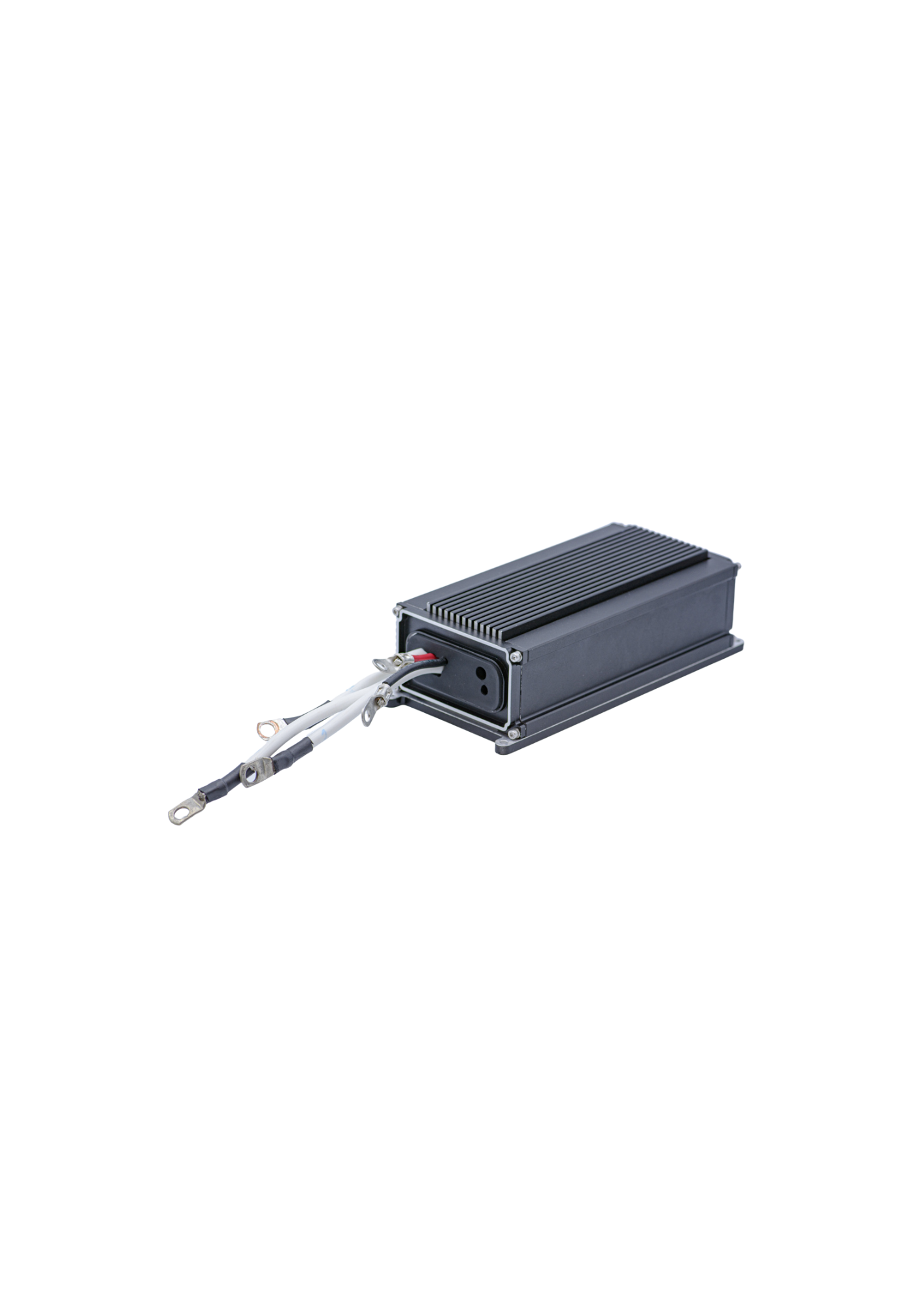

EV- Rider 85/135/200

עיצוב ללא שם (3)
עיצוב ללא שם (3)

EV- Rider 85/135/200

​Overview

Servo Motion Management solutions for

EV & Micro-EV

innovative Servo Motion Control Solutions

for energy-efficient electric motor controllers and safety-enhanced end-to-end solutions, with IoT options that support eV applications of any size and range.



EV-Rider 85 #RD000215



Reliable High-performance High power density EV-motor controller driver.



  • Small size-54*90*166 mm high power density
  • Powers motors 6-10KW @72 VDC
  • 85ARMS continuous current (210 ARMS, 2min. 250RMS 5sec)
  • Sinusoidal, flux-oriented current IQ ID vector control
  • Micro feedback-• µeV Motor feedback: Hall, Incremental encoder or Sin/Cos (For extra smooth operation at low velocity)
  • PID closed loop modes: Position, Velocity, current, and stepper
  • Autotuning tuning for PID
  • Dedicated GUI, load/save parameters with real-time signal scope
  • Communication: CAN bus and/or RS232
  • 3 Analog(0-5VDC),5 digital inputs, 3 high-side drivers for front and rear lighting outputs
  • High current, low Rds(on),100V or 120V power MOSFETs
  • Protection: over-temperature, over-voltage, over-current, cross-conduction, Hall fault, motor stall, and more
  • Operating temperature -40°C to +85°C, can be extended on request to -55°c





EV- Rider 135 #RD000229



Reliable, High performance, High power density, EV-motor controller driver

  • Small size-54*90*166 mm high power density.
  • Powers motors 8-15KW @72 VDC
  • 135ARMS continuous current (330 ARMS, 2min. 420ARMS 5sec)
  • Sinusoidal, flux-oriented current IQ ID vector control
  • Micro feedback-• µeV Motor feedback: Hall, Incremental encoder or Sin/Cos (For extra smooth operation at low velocity)
  • PID closed loop modes: Position, Velocity, current, and stepper
  • Autotuning tuning for PID
  • Dedicated GUI, load/save parameters with real-time signal scope
  • Communication: CAN bus and/or RS232
  • • 3 Analog(0-5VDC),5 digital inputs, 3 high-side drivers for front and rear lighting outputs
  • High current, low Rds(on),100V or 120V power MOSFETs
  • Protection: over-temperature, over-voltage, over-current, cross-conduction, Hall fault, motor stall, and more
  • Operating temperature -40°C to +85°C, can be extended on request to -55°c





EV-Rider 200 #RD000218



Reliable, High performance, High power density, EV-motor controller driver.



  • Small size- 185X240X50 mm high power density
  • Powers motors 10-20KW @72 VDC
  • 200ARMS continuous current (420 ARMS, 2min. 520ARMS 5sec)
  • Sinusoidal, flux-oriented current IQ ID vector control
  • Micro feedback-• µeV Motor feedback: Hall, Incremental encoder or Sin/Cos (For extra smooth operation at low velocity)
  • PID closed loop modes: Position, Velocity, current, and stepper
  • Autotuning tuning for PID
  • Dedicated GUI, load/save parameters with real-time signal scope
  • 3 Analog(0-5VDC),5 digital inputs, 3 high-side drivers for front and rear lighting outputs
  • High current, low Rds(on),100V or 120V power MOSFETs
  • Protection: over-temperature, over-voltage, over-current, cross-conduction, Hall fault, motor stall, and more
  • Operating temperature -40°C to +85°C, can be extended on request to -55°c



Download

Brochure

APPLY FOR MORE INFO
e90b1b_7e1dc4b5abd7482189ce53c7b2f05c16~mv2-1

Get more info about the EV- RIDER
