PDU - Intelligent Power distribution

Power Distribution, Optimization, and Management

PDUs - Smart Power Distribution

Do you work on mobile platforms that, when functioning at full capacity, prove to be mission-critical? Does the uptime concern you? Do you need to deal with reducing the platform's weight and power consumption? Do you need to design your power grid to full electrical hazards protection alongside monitoring in real-time the electrical grid situation?

Most companies face the same challenge — power protection/management. The Power Rider PDU family line provides a viable and powerful power distribution unit solution with multiple outputs built to distribute electric power while adding extra added values. With PDUs that have some of the highest electrical protection known to hit the market, up to 240A in total, the Power Rider PDU series further extends a fully automated recovery plan. In case anything were to happen, the device will try to bring the line back automatically.

You will also be facing advantages as extremely high engineering flexibility of your own choice with over 40 possible channel parameter configurations. You will find sequential operation options with easy-to-configure logic rules, IO configuration, and predefined modes. Additionally, you’ll find preventive and predictive maintenance tools such as graphs, event log-files, abnormal power consumption alerts, and power grid full power consumption overview for more efficient power design.

Avoid difficulties such as optimizing load levels, downtime due to overloads, and other power events. Reach out for more information about the Power Rider.

Benefits

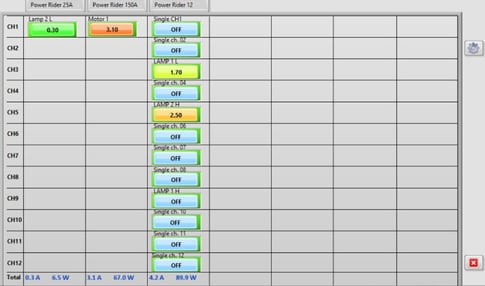

Extra user-friendly, intuitive Software interface (included)
Multi-channel SSCB (Solid State Circuit Breaker)
Power management and maintenance tools
Highest electrical protection known, with the highest reliability (Patented)
UP to 240A in total
Prioritizing mechanism
Over 40 possible channel parameter configurations
Two-channel redundancy option
Two-channel grouping option (up to 50A) - six groups in total
Full power consumption overview
Tripping event log and Alerts
Soft start (In 12 ch. PDU)
Sequential operation capability
Logic Rules
Available in Military Grade (in authorized countries only)

Power Rider distribution highlights

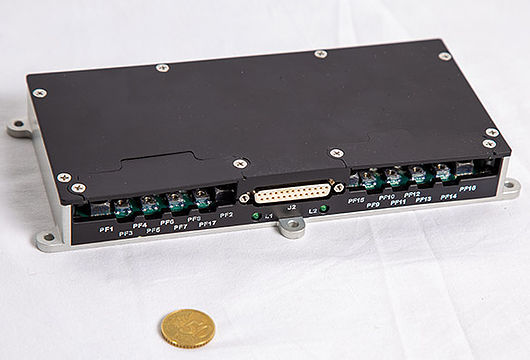

Power Rider , 12 channels PDU

Power Rider , 12 channels PDU

Power Rider , 12 channels PDU

Power Rider , 12 channels PDU

Overview

Highlights:

Up to 25A for each channel circuit breaker
8- 48V DC
Circuit breaker (fuse), relay, and contactor in each channel
Tow levels of protection:

Software – I²t, over-current, over-voltage, over-temperature
Hardware – 1μ second over-current cutoff

Solid-state based technology
Configurable – over 20 flexible configuration parameters for each channel individually
Measurement of input voltage, output voltage, load current and temperature.
Communication: CAN bus (50kbps-1Mbps - J1939), Ethernet (UDP) or RS 422/485.
Discrete I/O: 12 digital input, 2 digital output (open collector)
Option to connect up to two channels in parallel (up to 50 Ampere)
Sleep mode / Shut Down mode
BIT (Power-on and On-the-fly built-in test)

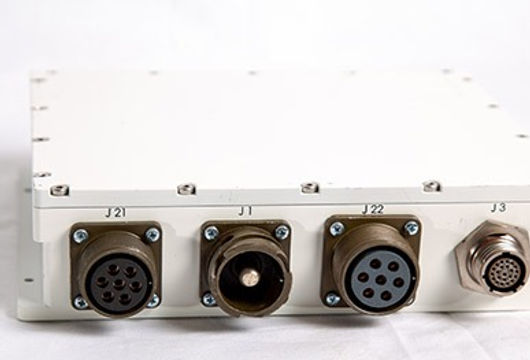

Channels PDU, Mil Std 12 Power Rider

Channels PDU, Mil Std 12 Power Rider

Channels PDU, Mil Std 12 Power Rider

Channels PDU, Mil Std 12 Power Rider

Overview

- - Up to 25A for each channel circuit breaker
  - 8- 48V DC
  - Circuit breaker (fuse), relay, and contactor in each channel
  - Tow levels of protection:
  - Software – I²t, over-current, over-voltage, over-temperature
  - Hardware – 1μ second over-current cutoff
  - Solid-state based technology
  - Configurable – over 20 flexible configuration parameters for each channel individually
  - Measurement of input voltage, output voltage, load current and temperature.
  - Communication: CAN bus (50kbps-1Mbps - J1939), Ethernet (UDP) or RS 422/485.
  - Discrete I/O: 12 digital input, 2 digital output (open collector)
  - Option to connect up to two channels in parallel (up to 50 Ampere)
  - Sleep mode / Shut Down mode
  - BIT (Power-on and On-the-fly built-in test)

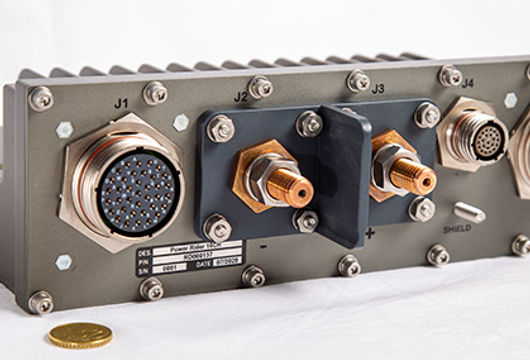

Power Rider , 16 channels PDU, Mil Std

Power Rider , 16 channels PDU, Mil Std

Power Rider , 16 channels PDU, Mil Std

Power Rider , 16 channels PDU, Mil Std

Overview

- Up to 25A for each channel circuit breaker
- 8- 48V DC
- Circuit breaker (fuse), relay, and contactor in each channel
- Three levels of protection:
- Software – I²t, over-current, over-voltage, over-temperature
- Hardware – 1μ second over-current cutoff
- Thermal fuse
- Solid-state based technology
- Cascade option
- Circuit breaker support network
- Configurable – over 20 flexible configuration parameters for each channel individually
- Intuitive GUI, DLL library
- Building block for ‘Power Distribution Unit’
- Measurement of input voltage, output voltage, load current and temperature
- Communication: CAN bus (50kbps-1Mbps - J1939), Ethernet (UDP) or RS 422/485.
- Advanced reporting and easy maintenance – event logs, graphs, conditional alerts
- Discrete I/O: 12 digital input, 2 digital output (open collector)
- Option to connect up to two channels in parallel (up to 50 Ampere)
- Sleep mode / Shut Down mode
- BIT (Power-on and On-the-fly built-in test)
- Full Mil-STD (Available in authorized territories only)

Engineering cables

Engineering cables - Power Accessories

Engineering cables - Power Accessories

Engineering cables

Overview

Command and communication engineering harnesses
